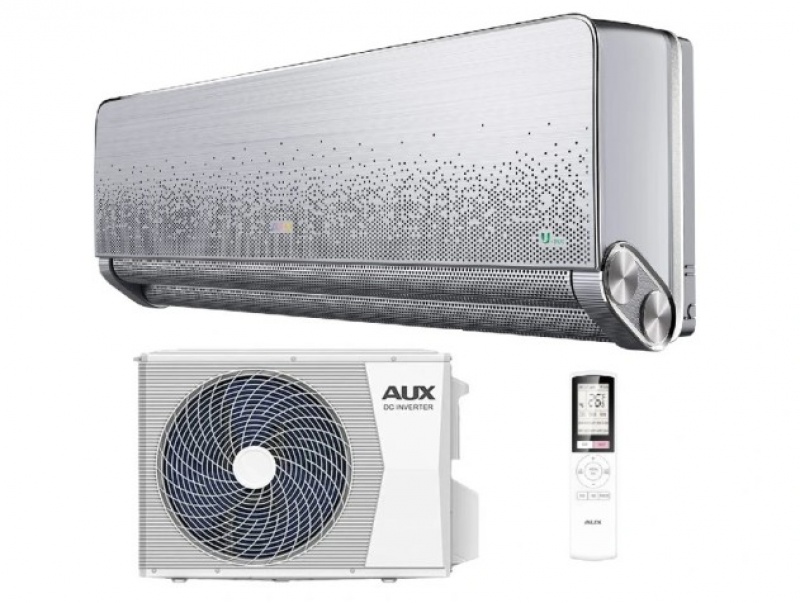

| AUX C-Smart PRO (R32) | |||
|---|---|---|---|
| Modele | AUX C-Smart PRO 9000 BTU (R32) | AUX C-Smart PRO 12000 BTU (R32) | |
| BTU cooling (BTU) | 9200 | 12000 | |
| BTU heating (BTU) | 11200 | 13000 | |
| Cooling capacity (kW) | 2.7 | 3.5 | |
| Heating capacity (kW) | 3.3 | 3.8 | |
| Power supply (V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | |
| Power consumption C (kW) | 0.64 | 0.80 | |
| Power consumption H (kW) | 0.72 | 1.00 | |
| SEER/SCOP (W/W) | 10.1/5.30 | 9.90/5.30 | |
| EER/COP (W/W) | 4.3/4.72 | 4.3/4.72 | |
| Energy class C | A+++ | A+++ | |
| Energy class H | A++ | A++ | |
| Indoor unit (IDU) | ▼ | ▼ | |
| Sound pressure level IDU (M) (db(A)) | 27 | 27 | |
| Sound power level IDU (M) (db(A)) | 38 | 38 | |
| Net dimensions IDU (WxDxH) (mm) | 890 x 212 x 311 | 890 x 212 x 311 | |
| Net weight IDU (kg) | 8.0 | 8.0 | |
| Outdoor unit (ODU) | ▼ | ▼ | |
| Sound pressure level ODU (M) (dB(A)) | 51 | 51 | |
| Sound power level OU (M) (dB(A)) | 61 | 61 | |
| Net dimensions ODU (WxDxH) (mm) | 705 x 279 x 530 | 705 x 279 x 530 | |
| Net weight ODU (kg) | 24.5 | 24.5 | |
| Piping connection liquid (mm) | 6.35 | 6.35 | |
| Piping connection gas (mm) | 9.52 | 9.52 | |
| Max. distance lenght (m) | 20 | 20 | |
| Max. distance height (m) | 10 | 10 | |
| Refrigerant charge (kg) | 0.60 | 0.60 | |
| Operation ambient temp. range C (°C) | -10 → +49 | -10 → +49 | |
| Operation ambient temp. range H (°C) | -25 → +30 | -25 → +30 | |
| Control | Remote WI-FI | Remote WI-FI | |
