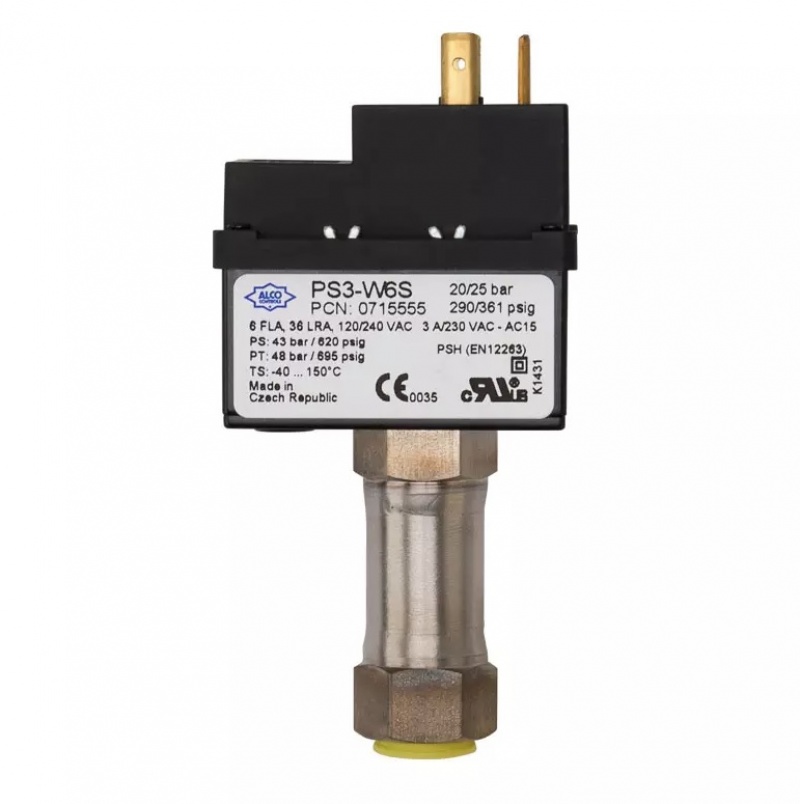

Alco PS3-W6S high pressure switch (20-25 bar)

Alco 715555 pressure switch with fixed switching point settings (20-25 bar), PS3 range, auto reset

  • Alco PS3-W6S 715555 Auto Reset High Pressure Pressure Switch.
  • Inlet/outlet pressures of 20 bar/25 bar; leak test pressure up to 50 bar.
  • Alco PS3-W6S with pressure switches.
  • Automatic pre-control with high temperature version with damper for direct compressor mounting (range 6).
  • Direct mounting reduces the number of joints, avoiding possible leaks.
  • Smart pressure switch with precise setting and repeatability.
  • Protection IP 65 if used with PS3-Nxx cables with plug (according to EN 175301-803), no additional gasket (molded in the plug) is required.
  • Plug cables are ordered separately.
  • Maximum temperature range: +70°C (ambient), +150°C (pressure connections).
  • Standard pressure connection 7/16”-20 UNF - female thread with Schrader opening.
  • Weight: 0.2 kg.
  • Made in EU: Czech Republic.

Specificații

  • Pressure type HP
  • Connection filetată (flare)
  • Inlet x out. connections
    • inch : 1/4
  • Adjusting domain 20 → 25 bar
  • Reset auto

Tabel comparativ

Alco pressure switches - HP
Modele Pressure typeConnectionInlet x out. connectionsAdjusting domain (bar)Reset
inch
PS1-A5A 4350500HPfiletată (flare)1/46,0 → 31,0auto
PS1-R5A 4350700HPfiletată (flare)1/46,0 → 31,0manual
PS3-A6S 715603HPfiletată (flare)1/411 → 16auto
PS3-B6S 0715563HPfiletată (flare)1/427.3 → 27.3manual
PS3-W6S 0715555HPfiletată (flare)1/420 → 25auto
PS3-W6S 0715556HPfiletată (flare)1/416 → 21auto
