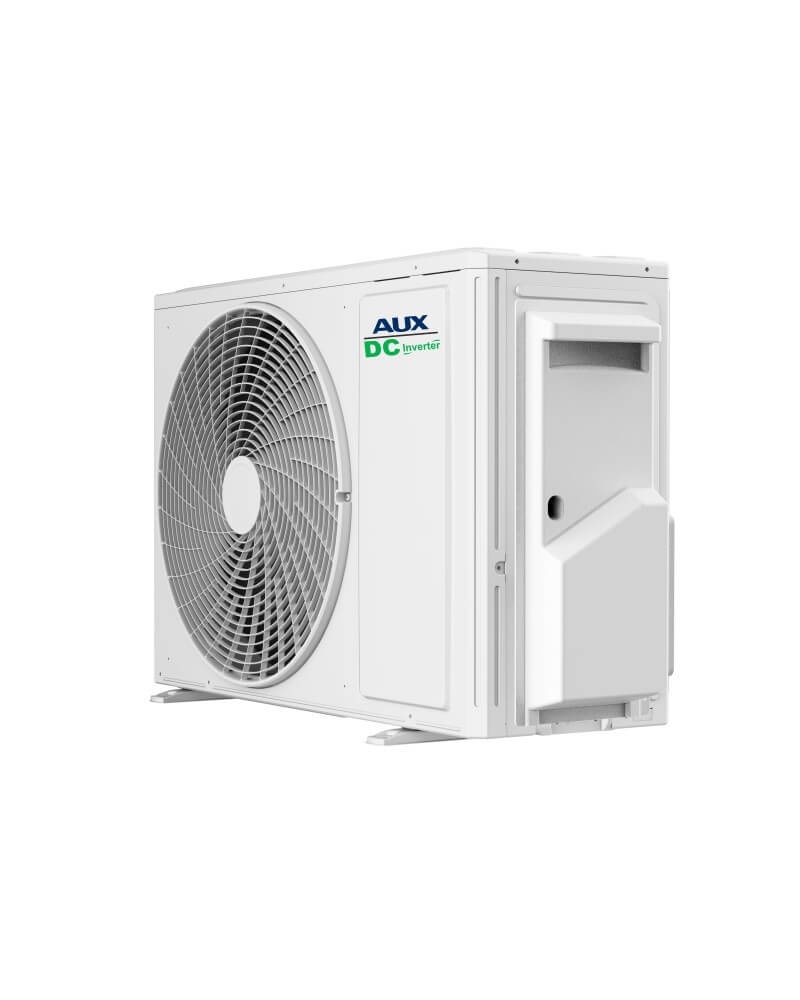

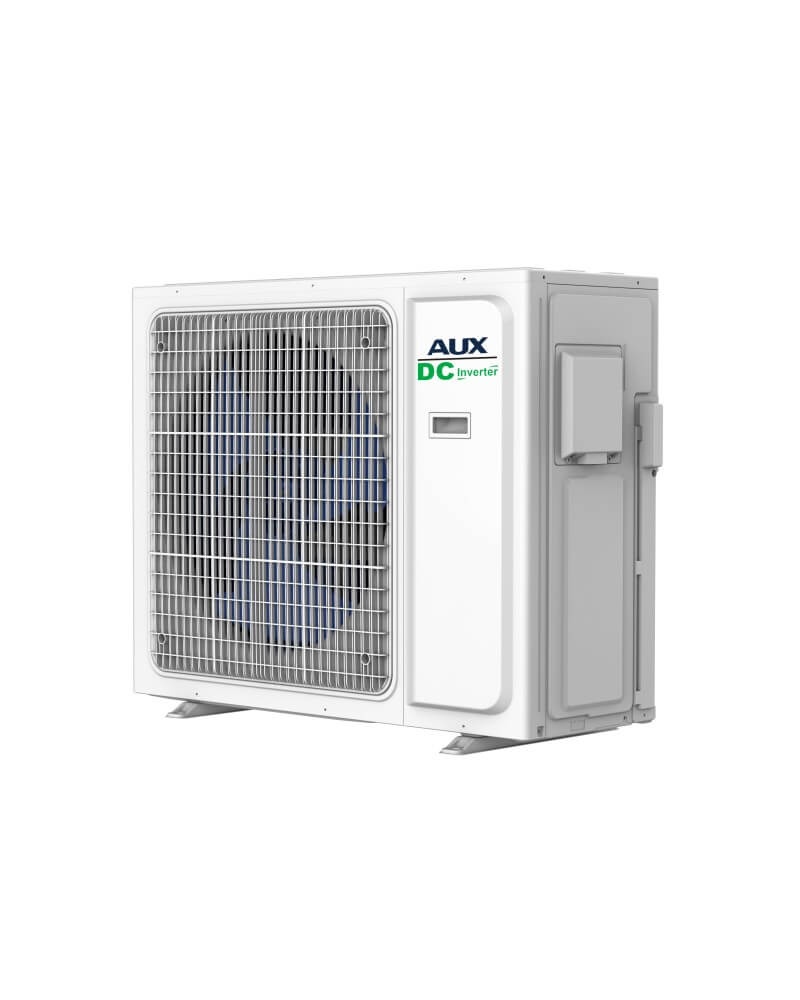

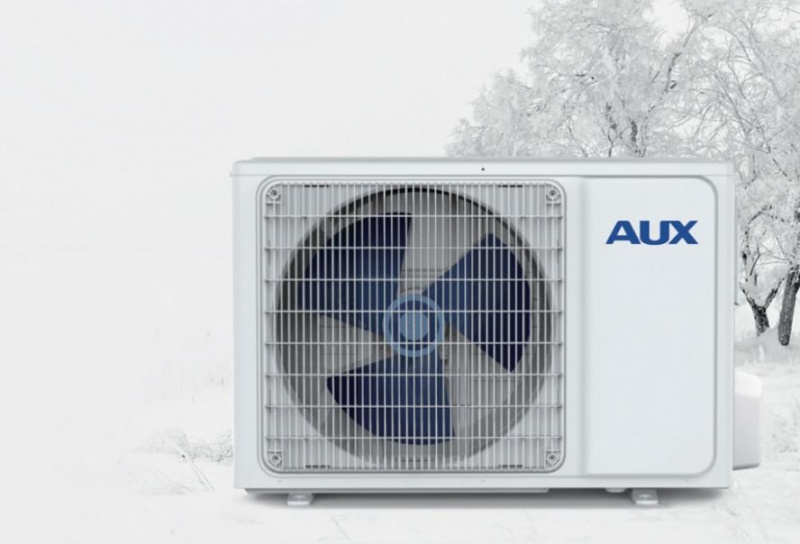

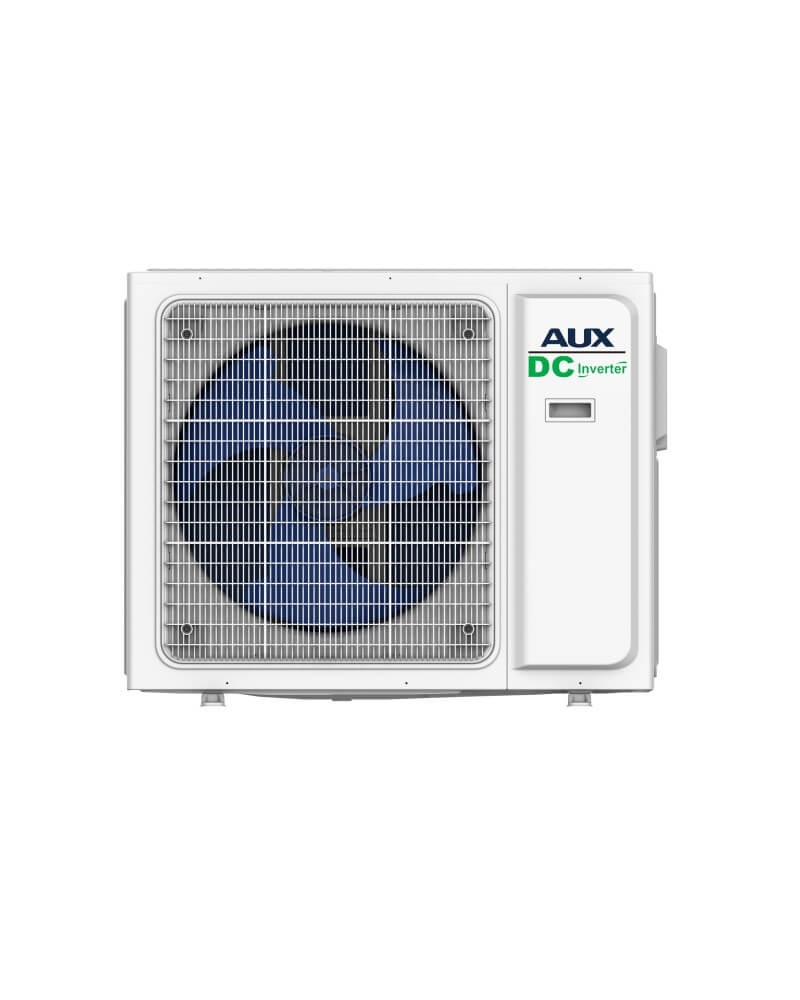

| AUX outdoor units | ||||||||
|---|---|---|---|---|---|---|---|---|
| Modele | AUX 14000 BTU Multisplit ODU | AUX 18000 BTU Multisplit ODU | AUX 21000 BTU Multisplit ODU | AUX 27000 BTU Multisplit ODU | AUX 28000 BTU Multisplit ODU | AUX 36000 BTU Multisplit ODU | AUX 42000 BTU Multisplit ODU | |
| BTU cooling (BTU) | 14000 | 18000 | 21000 | 27000 | 28000 | 36000 | 41000 | |
| BTU heating (BTU) | 15300 | 19100 | 22500 | 28000 | 30000 | 37500 | 44000 | |
| Cooling capacity (kW) | 4.1 | 5.3 | 6.2 | 7.9 | 8.2 | 10.5 | 12.0 | |
| Heating capacity (kW) | 4.5 | 5.6 | 6.6 | 8.2 | 8.8 | 11.0 | 13.0 | |
| Power supply (V/Hz/Ph) | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | 220-240/50/1 220-240/50/1 | |
| Power consumption C (kW) | 1.24 | 1.64 | 1.92 | 2.44 | 2.5 | 3.95 | 4.45 | |
| Power consumption H (kW) | 1.15 | 1.48 | 1.78 | 2.21 | 2.3 | 3.15 | 3.75 | |
| SEER/SCOP (W/W) | 6.15/4.12 | 6.18/4.05 | 6.13/4.20 | 6.15/4.16 | 6.15/4.16 | 6.15/4.12 | 6.14/4.14 | |
| EER/COP (W/W) | 4.02/3.96 | 4.1/4.0 | 4.1/4.1 | 4.1/4.1 | 4.1/4.1 | 4.1/4.09 | 4.05/4.00 | |
| Energy class C | A++ | A++ | A++ | A++ | A++ | A++ | A++ | |
| Energy class H | A+ | A+ | A+ | A+ | A+ | A+ | A+ | |
| Indoor unit (IDU) | ||||||||
| Sound pressure level IDU (M) (db(A)) | ||||||||
| Sound power level IDU (M) (db(A)) | ||||||||
| Net dimensions IDU (WxDxH) (mm) | ||||||||
| Net weight IDU (kg) | ||||||||
| Outdoor unit (ODU) | ▼ | ▼ | ▼ | ▼ | ▼ | ▼ | ▼ | |
| Sound pressure level ODU (M) (dB(A)) | 53 | 54 | 56 | 57 | 59 | 61 | 61 | |
| Sound power level OU (M) (dB(A)) | 63 | 64 | 66 | 67 | 69 | 68 | 68 | |
| Net dimensions ODU (WxDxH) (mm) | 785 x 300 x 550 | 785 x 300 x 550 | 900 x 350 x 700 | 900 x 350 x 700 | 985 x 395 x 808 | 985 x 395 x 808 | 985 x 395 x 808 | |
| Net weight ODU (kg) | 30 | 30 | 41.5 | 44.5 | 47 | 74 | 75 | |
| Piping connection liquid (mm) | 2×6.35 | 2×6.35 | 2×6.35 | 3×6.35 | 3×6.35 | 4×6.35 | 5×6.35 | |
| Piping connection gas (mm) | 2×9.52 | 2×9.52 | 3×9.52 | 3×9.52 | 4×9.52 | 4×9.52 | 5×9.52 | |
| Max. distance lenght (m) | 25 | 30 | 30 | 50 | 50 | 65 | 65 | |
| Max. distance height (m) | 10 | 20 | 20 | 25 | 25 | 30 | 30 | |
| Refrigerant charge (kg) | 1.00 | 1.03 | 1.15 | 1.45 | 1.5 | 2.3 | 2.3 | |
| Operation ambient temp. range C (°C) | -15 → 52 | -15 → 52 | -15 → 52 | -15 → 52 | -15 → 52 | -15 → 52 | -15 → 52 | |
| Operation ambient temp. range H (°C) | -22 → 24 | -22 → 24 | -22 → 24 | -22 → 24 | -22 → 24 | -22 → 24 | -22 → 24 | |
| Control | ||||||||

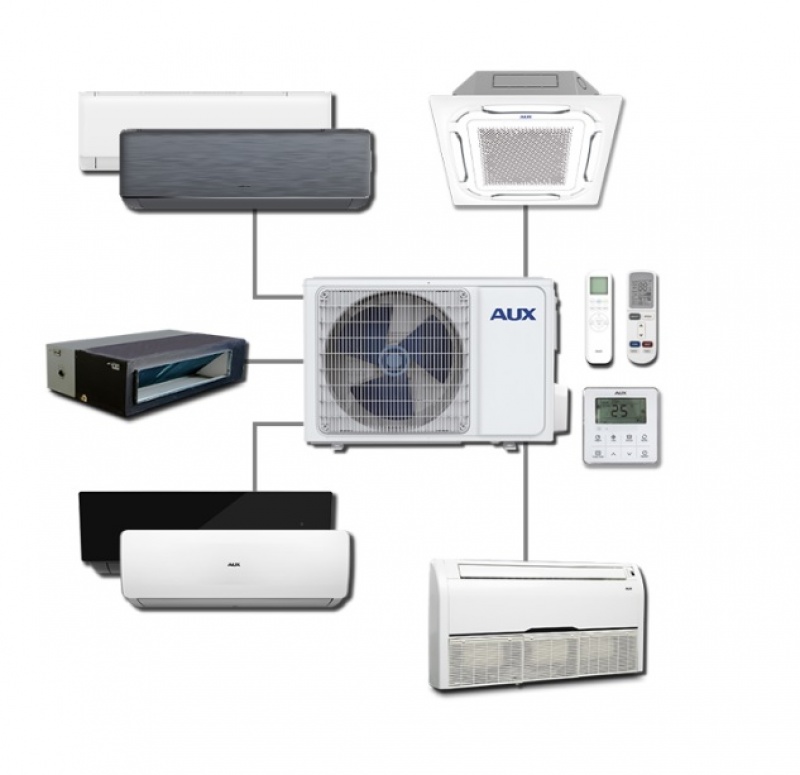

| Free-Match IDU compatibility | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | AUX J-Smart (R32) AUX Q-Smart (R32) AUX C-Smart (R32) AUX Console (R32) AUX Cassette (R32) AUX Duct (R32) | |
