Cubigel GD30FDC compressor (R134a, DC 12-42V)

Cubigel refrigeration compressor (ACC) GD30FDC for mobile applications (boats, camping cars), range LBP-MBP-HBP, 3 cm³, R134a, DC 12-42V

• ATTENTION: model discontinued. Can be replaced with BD35F or BD80F depending on customer criteria.
• Refrigeration compressor with special applications for boats or camping cars.
• Compressors for trucks, RVs, boats and other mobile applications must be designed to operate from a low voltage DC power supply, be compact in size, highly reliable and provide high performance, just like the GD30FDC.
• The GD30FDC is designed to operate quietly, efficiently and reliably even at tilt angles of 30º.
• Cubigel GD30FDC is presented with an extended temperature range: from negative temperatures (LBP, -30ºC) to positive ones (HBP, +10ºC).
• Reciprocating compressor with static cooling or ventilation, depending on the working conditions.
• The GD30FDC can be powered at any voltage between 12 and 42V DC and is designed for capillary tube expansion.
• Each unit is supplied with a dedicated electronic driver (FDC1), which has all the protections for both the battery and the driver itself, including the compressor motor. The driver automatically adapts to the voltage of the power supply.
• Evaporation temperature range: -30ºC to +10ºC.
• Condensing temperature range: up to 65ºC.
• Ambient temperature range: -10 to 55 °C (65 °C at start-up).
• Rotations per minute between 1500-3500 rpm.
• Cooling capacity depends on revolutions per minute and temperature. In the comparative table the capacity is shown for 2500 rpm (CECOMAF).

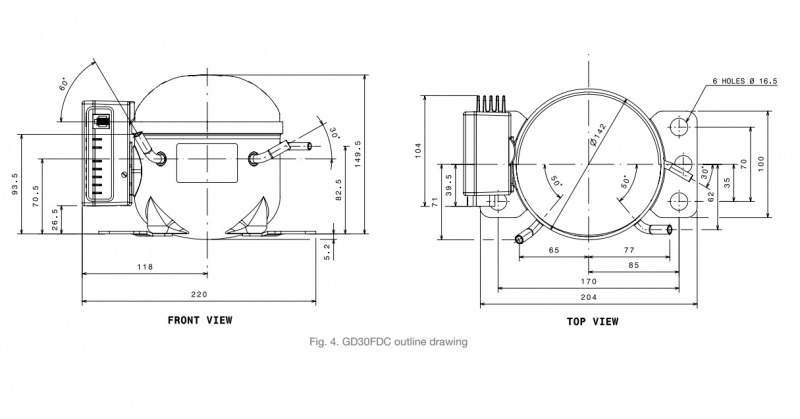

• Maximum height: 149.5 mm.
• Notes: This small compressor model is not designed for mobile off-road applications.
