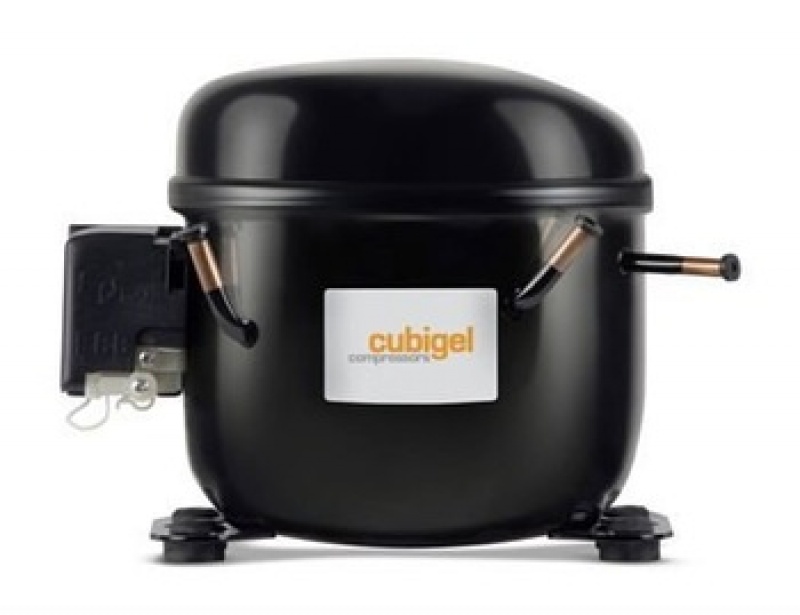

Cubigel GL90AA compressor (R134a)
Cubigel (ACC) GL90AA single-phase motor, freezing (LBP), 9.09 cm³, R134a
- Refrigeration compressor with applications for negative temperatures (LBP).
- 220V compressor with compact design, light weight and quiet operation.
- Motor: RSIR (Resistance Start-Induction Run), without capacitor; auxiliary winding disconnected after start up. Standard energy efficiency.
- This compact compressor model is mainly used for household refrigerators, water coolers, beverage coolers, beverage vending machines, beer dispensers, ice machines, showcases and freezers, etc.
- Single-phase power supply.

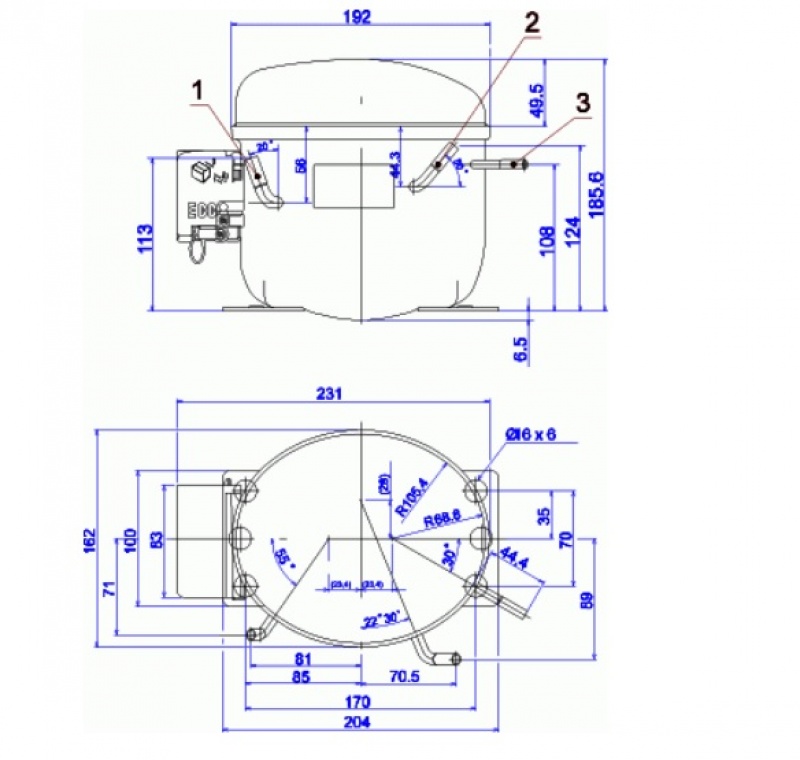

- Maximum height: 185.6 mm.
- Power supply 220-240/50/1 V/Hz/Ph
- Application LBP
- Refrigerant R134a
- Displacement 9.09 cm³
- Motor type RSIR
- Cooling capacity [W] / Evapor. temp. [°C]
- -40°C : - W
- -35°C : 82 W
- -30°C : 119 W
- -25°C : 165 W
- -15°C : - W
- -10°C : 351 W
- -5°C : - W
- 5°C : W
- 7,2°C : - W
- 10°C : - W
- Net weight 9.40 kg
Cubigel LBP (R134a) |
Modele |
Power supply (V/Hz/Ph) | Displacement (cm³) | Cooling capacity [W] / Evapor. temp. [°C] (W) |
-40°C | -35°C | -30°C | -25°C | -15°C | -10°C | -5°C | 5°C | 7,2°C | 10°C |
L22HL | 220-240/50/1 | 2.20 | - | 18 | 24 | 34 | - | 79 | - | | - | - |
GD30FDC 12-24V | 12-24/75/1 | 3.0 | - | - | 30 | 42 | 77 | 104 | 134 | 214 | 239 | 264 |
L30HL | 220-240/50/1 | 3.1 | - | 23 | 34 | 49 | - | 112 | - | | - | - |
B38H | 220-240/50/1 | 3.8 | - | 33 | 45 | 63 | - | 147 | - | | - | - |
GL45AA | 220-240/50/1 | 4.56 | - | 37 | 57 | 81 | - | 184 | - | | - | - |
GL60AA | 220-240/50/1 | 5.98 | - | 50 | 75 | 107 | - | 239 | - | | - | - |
GL70AA | 220-240/50/1 | 6.65 | - | 70 | 96 | 129 | - | 278 | - | | - | - |
GL80AA | 220-240/50/1 | 8.10 | - | 68 | 102 | 144 | - | 326 | - | | - | - |
GL90AA | 220-240/50/1 | 9.09 | - | 82 | 119 | 165 | - | 351 | - | | - | - |
GLM12LA | 220-240/50/1 | 10.7 | - | 121 | 175 | 241 | 411 | 514 | - | | - | - |
GL99AA | 220-240/50/1 | 9.95 | - | 83 | 125 | 175 | - | 377 | - | | - | - |
GP12FB | 220-240/50/1 | 12.05 | - | 83 | 132 | 190 | - | 424 | - | | - | - |
GPY12LA | 220-240/50/1 | 12.10 | - | 113 | 162 | 225 | - | 509 | - | | - | - |
GP14FB | 220-240/50/1 | 14.17 | - | 99 | 158 | 228 | - | 509 | - | | - | - |
GP16FB | 220-240/50/1 | 16.15 | - | 142 | 229 | 328 | 557 | 688 | - | | - | - |
