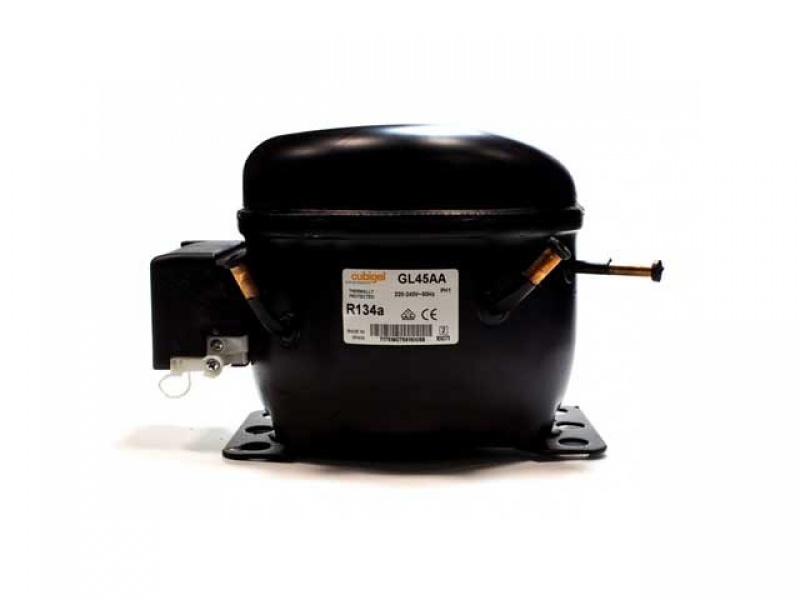

Cubigel GL45AA compressor (R134a)

Compresor Cubigel GL 45AA (R134a)Compresor frigorific Cubigel GL45AA
qr Ai observat o eroare?

COD DTN

  • 101.01.0045

COD PRODUS

Solicită ofertă PDF

Single-phase motor Cubigel (ACC) GL45AA, freezing (LBP), 4.56 cm³, R134a

  • Refrigeration compressor with applications for negative temperatures (LBP).
  • 220V compressor with compact design, light weight and quiet operation.
  • Motor: RSIR (Resistance Start-Induction Run), without capacitor; auxiliary winding disconnected after start up. Standard energy efficiency.
  • This model of small compressor is mainly used for household refrigerators, water coolers, beverage coolers, beverage vending machines, beer dispensers, ice machines, showcases and freezers, etc.
  • Single-phase power supply.

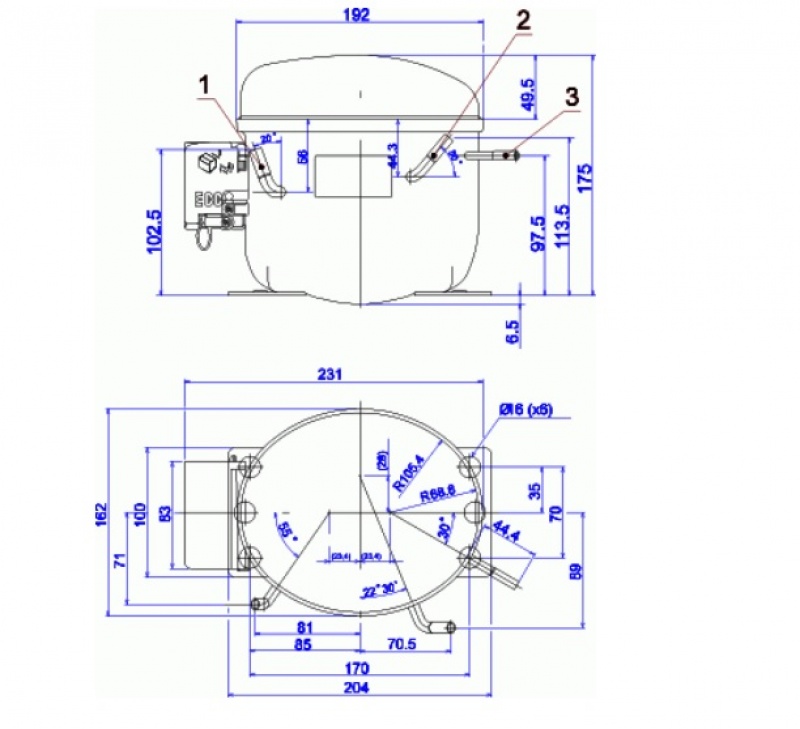

  • Maximum height: 175 mm.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP
  • Refrigerant R134a
  • Displacement 4.56 cm³
  • Motor type RSIR
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -40°C : - W
    • -35°C : 37 W
    • -30°C : 57 W
    • -25°C : 81 W
    • -15°C : - W
    • -10°C : 184 W
    • -5°C : - W
    • 5°C : W
    • 7,2°C : - W
    • 10°C : - W
  • Net weight 7.9 kg

Tabel comparativ

Cubigel LBP (R134a)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)
-40°C-35°C-30°C-25°C-15°C-10°C-5°C5°C7,2°C10°C
L22HL220-240/50/1LBP2.20-182434-79---
GD30FDC 12-24V12-24/75/1LBP
MBP
HBP		3.0--304277104134214239264
GD30AG220-240/50/1LBP3.08-213449-111---
L30HL220-240/50/1LBP3.1-233449-112---
B38H220-240/50/1LBP3.8-334563-147---
GL45AA220-240/50/1LBP4.56-375781-184---
GL60AA220-240/50/1LBP5.98-5075107-239---
GL70AA220-240/50/1LBP6.65-7096129-278---
HYE69YL220-240/50/1LBP6.7-6893126219279----
GL80AA220-240/50/1LBP8.10-68102144-326---
GL90AA220-240/50/1LBP9.09-82119165-351---
GLM12LA220-240/50/1LBP10.7-121175241411514---
GL99AA220-240/50/1LBP9.95-83125175-377---
GP12FB220-240/50/1LBP12.05-83132190-424---
GPY12LA220-240/50/1LBP12.10-113162225-509---
GP14FB220-240/50/1LBP14.17-99158228-509---
GP16FB220-240/50/1LBP16.15-142229328557688---
