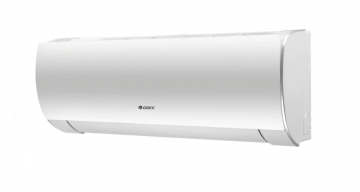

Wall-mounted inverter Gree Fairy 9000 BTU (R32)

nou

Solicită ofertă PDF

Special control of On/Off functions, Cold Plasma filter, R32 eco-friendly refrigerant, Wi-Fi

Elegant and ultra-modern design.
Modern WI-FI remote control, by mobile phone.
Special On / Off control functions by card door, auto-diagnosis, sleep and turbo.
Timer, restart and intelligent operation.
The Cold Plasma Generator and the carbon filter actively provide superior quality of air.
Ecologic R32 refrigerant with high performance and minimal impact on media.

Power supply 220-240/50/1 V/Hz/Ph
Refrigerant R32
BTU cooling 9200 BTU
BTU heating 10200 BTU
Cooling capacity 2.69 kW
Heating capacity 2.98 kW
Power consumption C 0.78 kW
Power consumption H 0.78 kW
SEER/SCOP 6.8/4.1 W/W
EER/COP 3.35/3.85 W/W
Rated current C/H 3.8/3.5 A/A
Air flow volume (M) 470 m³/h
Piping connection liquid 6.35 mm
Piping connection gas 9.52 mm
Control Remote, WI-FI
Sound pressure level (M) 32 dB (A)
Net dimensions (WxDxH) 889 x 212 x 294 mm
Net weight 11 kg
Sound power level (M) 43 dB (A)
Free-Match compatibility GWHD(18)NK6LO, GWHD(24)NK6LO, GWHD(28)NK6LO, GWHD(42)NK6LO

Fairy (R32)
Modele	GWH09ACC-K6DNA1A/I	GWH12ACC-K6DNA1F/I	GWH18ACD-K6DNA1D/I	GWH24ACE-K6DNA1A/I
Power supply (V/Hz/Ph)	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
Refrigerant	R32	R32	R32	R32
BTU cooling (BTU)	9200	12000	17700	23800
BTU heating (BTU)	10200	12500	18100	25250
Cooling capacity (kW)	2.69	3.51	5.19	6.97
Heating capacity (kW)	2.98	3.66	5.30	7.40
Air flow volume (M) (m³/h)	470	490	610	950
Piping connection liquid (mm)	6.35	6.35	6.35	6.35
Piping connection gas (mm)	9.52	9.52	12.7	15.9
Control	Remote WI-FI	Remote WI-FI	Remote WI-FI	Remote WI-FI
Sound pressure level (M) (dB (A))	32	34	38	39
Net dimensions (WxDxH) (mm)	889 x 212 x 294	47.5	47.5	50.5
Net weight (kg)	11	11	13.5	17.5
Sound power level (M) (dB (A))	43	889 x 212 x 294	889 x 212 x 294	1122 x 247 x 329
Free-Match compatibility	GWHD(18)NK6LO GWHD(24)NK6LO GWHD(28)NK6LO GWHD(36)NK6LO GWHD(42)NK6LO	GWHD(18)NK6LO GWHD(24)NK6LO GWHD(28)NK6LO GWHD(36)NK6LO GWHD(42)NK6LO	GWHD(24)NK6LO GWHD(28)NK6LO GWHD(36)NK6LO GWHD(42)NK6LO	GWHD(36)NK6LO GWHD(42)NK6LO
Super Free-Match compatibility
