Refrigeration

Evaporators & accessories

563 produse

Complete range of refrigeration vaporizers Guntner, Roen-Est, ECO Luvata. Each air blower absorbs heat from the desired space to cool, being one of the most important elements of the refrigeration ...system. DTN Group offers you: slim cold air blower or ceiling vaporizer (ceiling vaporizer), cubic blower (suspended from the ceiling) and custom evaporators (wall and floor vaporizers), flow, delta t capacity and air jet length differing in capacity. The smallest evaporators are those suitable for showcases and refrigerators (showcase evaporator, refrigerator evaporator). The most powerful vaporizers with forced air circulation are generally between 10-20 kW, the industrial ones corresponding to even a few hundred kW. The lower the temperature (freezing or super-freezing), the slats will be placed at a greater distance so as not to freeze. We also provide accessories such as: fans, motor-fans, evaporator defrost heater / defrost cables, etc. The correct choice of evaporators (matching both the unit and the total cooling capacity) is essential, so that the evaporation / vaporization process corresponds to the required cooling.
Mai mult

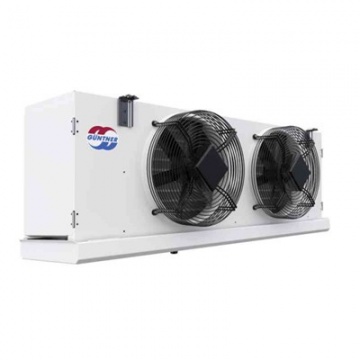

Güntner GACC RX 040.1/2-40.A-1820885 evaporator

Güntner GACC RX 040.1/2-40.A-1820885 evaporator
  • Power supply (V/Hz/Ph)220-240/50/1 380-400/50/3
  • Fan no.2
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)6300
  • Nominal capacity SC2* (kW)8,78
  • Nominal capacity SC3* (kW)6,86
Vezi produs

Güntner RX 040.1/3-40.A-1820868 evaporator

Güntner RX 040.1/3-40.A-1820868 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.3
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)7950
  • Nominal capacity SC2* (kW)18,82
  • Nominal capacity SC3* (kW)15,19
Vezi produs

Güntner RX 040.1/3-40.A-1820873 evaporator

Güntner RX 040.1/3-40.A-1820873 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.3
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)8640
  • Nominal capacity SC2* (kW)16,96
  • Nominal capacity SC3* (kW)13,37
Vezi produs

Güntner RX 040.1/4-40.A-1820862 evaporator

Güntner RX 040.1/4-40.A-1820862 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.4
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)10600
  • Nominal capacity SC2* (kW)25,17
  • Nominal capacity SC3* (kW)20,58
Vezi produs

Güntner RX 040.1/4-40.A-1820888 evaporator

Güntner RX 040.1/4-40.A-1820888 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.4
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)11520
  • Nominal capacity SC2* (kW)22,49
  • Nominal capacity SC3* (kW)18,03
Vezi produs

Güntner RX 050.1/2-40.A-1820857 evaporator

Güntner RX 050.1/2-40.A-1820857 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.2
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)13000
  • Nominal capacity SC2* (kW)24,55
  • Nominal capacity SC3* (kW)19,27
Vezi produs

Güntner RX 050.1/2-40.A-1820869 evaporator

Güntner RX 050.1/2-40.A-1820869 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.2
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)13580
  • Nominal capacity SC2* (kW)18,30
  • Nominal capacity SC3* (kW)14,74
Vezi produs

Güntner RX 050.1/2-40.A-1820872 evaporator

Güntner RX 050.1/2-40.A-1820872 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.2
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)12420
  • Nominal capacity SC2* (kW)28,17
  • Nominal capacity SC3* (kW)22,51
Vezi produs

Güntner RX 050.1/3-40.A-1820850 evaporator

Güntner RX 050.1/3-40.A-1820850 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.3
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)18630
  • Nominal capacity SC2* (kW)42,48
  • Nominal capacity SC3* (kW)34,10
Vezi produs

Güntner RX 050.1/3-40.A-1820861 evaporator

Güntner RX 050.1/3-40.A-1820861 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.3
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)19500
  • Nominal capacity SC2* (kW)36,87
  • Nominal capacity SC3* (kW)28,97
Vezi produs

Güntner RX 050.1/4-40.A-1820847 evaporator

Güntner RX 050.1/4-40.A-1820847 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.4
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)26000
  • Nominal capacity SC2* (kW)49,19
  • Nominal capacity SC3* (kW)36,33
Vezi produs

Güntner RX 050.1/4-40.A-1820853 evaporator

Güntner RX 050.1/4-40.A-1820853 evaporator
  • Power supply (V/Hz/Ph)380-400/50/3
  • Fan no.4
  • Fin spacing (mm)4
  • Air flow of evaporator (m³/h)24840
  • Nominal capacity SC2* (kW)56,98
  • Nominal capacity SC3* (kW)43,43
Vezi produs
