Refrigeration

Evaporators & accessories

563 products

Complete range of refrigeration vaporizers Guntner, Roen-Est, ECO Luvata. Each air blower absorbs heat from the desired space to cool, being one of the most important elements of the refrigeration ...system. DTN Group offers you: slim cold air blower or ceiling vaporizer (ceiling vaporizer), cubic blower (suspended from the ceiling) and custom evaporators (wall and floor vaporizers), flow, delta t capacity and air jet length differing in capacity. The smallest evaporators are those suitable for showcases and refrigerators (showcase evaporator, refrigerator evaporator). The most powerful vaporizers with forced air circulation are generally between 10-20 kW, the industrial ones corresponding to even a few hundred kW. The lower the temperature (freezing or super-freezing), the slats will be placed at a greater distance so as not to freeze. We also provide accessories such as: fans, motor-fans, evaporator defrost heater / defrost cables, etc. The correct choice of evaporators (matching both the unit and the total cooling capacity) is essential, so that the evaporation / vaporization process corresponds to the required cooling.
Mai mult

ESR 15042 6-tubes static evaporator (1500x40x420mm)

ESR 15042 6-tubes static evaporator (1500x40x420mm)new
  • No. of total tubes6
  • Length (m)
  • Dimensions (L x W x H) (mm)1500 x 40 x 420
  • Performance ΔT10°C (W)306
Product details

ESR 17042 6-tubes static evaporator (1700x40x420mm)

ESR 17042 6-tubes static evaporator (1700x40x420mm)new
  • No. of total tubes6
  • Length (m)1700
  • Dimensions (L x W x H) (mm)1700 x 40 x 420
  • Performance ΔT10°C (W)350
Product details

ESR 20042 6-tubes static evaporator (2000x40x420mm)

ESR 20042 6-tubes static evaporator (2000x40x420mm)new
  • No. of total tubes6
  • Length (m)2000
  • Dimensions (L x W x H) (mm)2000 x 40 x 420
  • Performance ΔT10°C (W)414
Product details

SBT 640/75 6-tubes static evaporator (400x75x210mm)

SBT 640/75 6-tubes static evaporator (400x75x210mm)new
  • No. of total tubes6
  • Length (m)400
  • Dimensions (L x W x H) (mm)400 x 75 x 210
  • Performance ΔT10°C (W)69
Product details

SBT 650/75 6-tubes static evaporator (500x75x210mm)

SBT 650/75 6-tubes static evaporator (500x75x210mm)new
  • No. of total tubes6
  • Length (m)500
  • Dimensions (L x W x H) (mm)500 x 75 x 210
  • Performance ΔT10°C (W)90
Product details

SBT 6150/75 6-tubes static evaporator (1500x75x210mm)

SBT 6150/75 6-tubes static evaporator (1500x75x210mm)new
  • No. of total tubes6
  • Length (m)1500
  • Dimensions (L x W x H) (mm)1500 x 75 x 210
  • Performance ΔT10°C (W)306
Product details

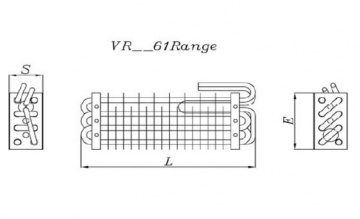

VR 4061 6-tubes static evaporator (400x75x140mm)

VR 4061 6-tubes static evaporator (400x75x140mm)new
  • No. of total tubes6
  • Length (m)400
  • Dimensions (L x W x H) (mm)400 x 75 x 140
  • Performance ΔT10°C (W)57
Product details

VR 5061 6-tubes static evaporator (500x75x140mm)

VR 5061 6-tubes static evaporator (500x75x140mm)new
  • No. of total tubes6
  • Length (m)500
  • Dimensions (L x W x H) (mm)500 x 75 x 140
  • Performance ΔT10°C (W)76
Product details

VR 7061 6-tubes static evaporator (700x75x140mm)

VR 7061 6-tubes static evaporator (700x75x140mm)new
  • No. of total tubes6
  • Length (m)700
  • Dimensions (L x W x H) (mm)700 x 75 x 140
  • Performance ΔT10°C (W)112
Product details

VR 9061 6-tubes static evaporator (900x75x140mm)

VR 9061 6-tubes static evaporator (900x75x140mm)new
  • No. of total tubes6
  • Length (m)900
  • Dimensions (L x W x H) (mm)900 x 75 x 140
  • Performance ΔT10°C (W)149
Product details

VR 13061 6-tubes static evaporator (1300x75x140mm)

VR 13061 6-tubes static evaporator (1300x75x140mm)new
  • No. of total tubes6
  • Length (m)1300
  • Dimensions (L x W x H) (mm)1300 x 75 x 140
  • Performance ΔT10°C (W)222
Product details

SBT 850/75 8-tubes static evaporator (500x75x280mm)

SBT 850/75 8-tubes static evaporator (500x75x280mm)new
  • No. of total tubes8
  • Length (m)500
  • Dimensions (L x W x H) (mm)500 x 75 x 280
  • Performance ΔT10°C (W)121
Product details
